SBFT/ICST Tool Competition: Self-Driving Car Testing

Christian Birchler

University of Bern

Zurich University of Applied Sciences

Switzerland

Stefan Klikovits

Johannes Keppler University Linz

Austria

Mattia Fazzini

University of Minnesota

USA

Sebastiano Panichella

University of Bern

Switzerland

Self-Driving Car Competition

Context

Cost
Replicability

Realism
Reliability

Cost
Replicability

Realism
Reliability

Cost
Replicability

Realism
Reliability

BeamNG.tech Simulator

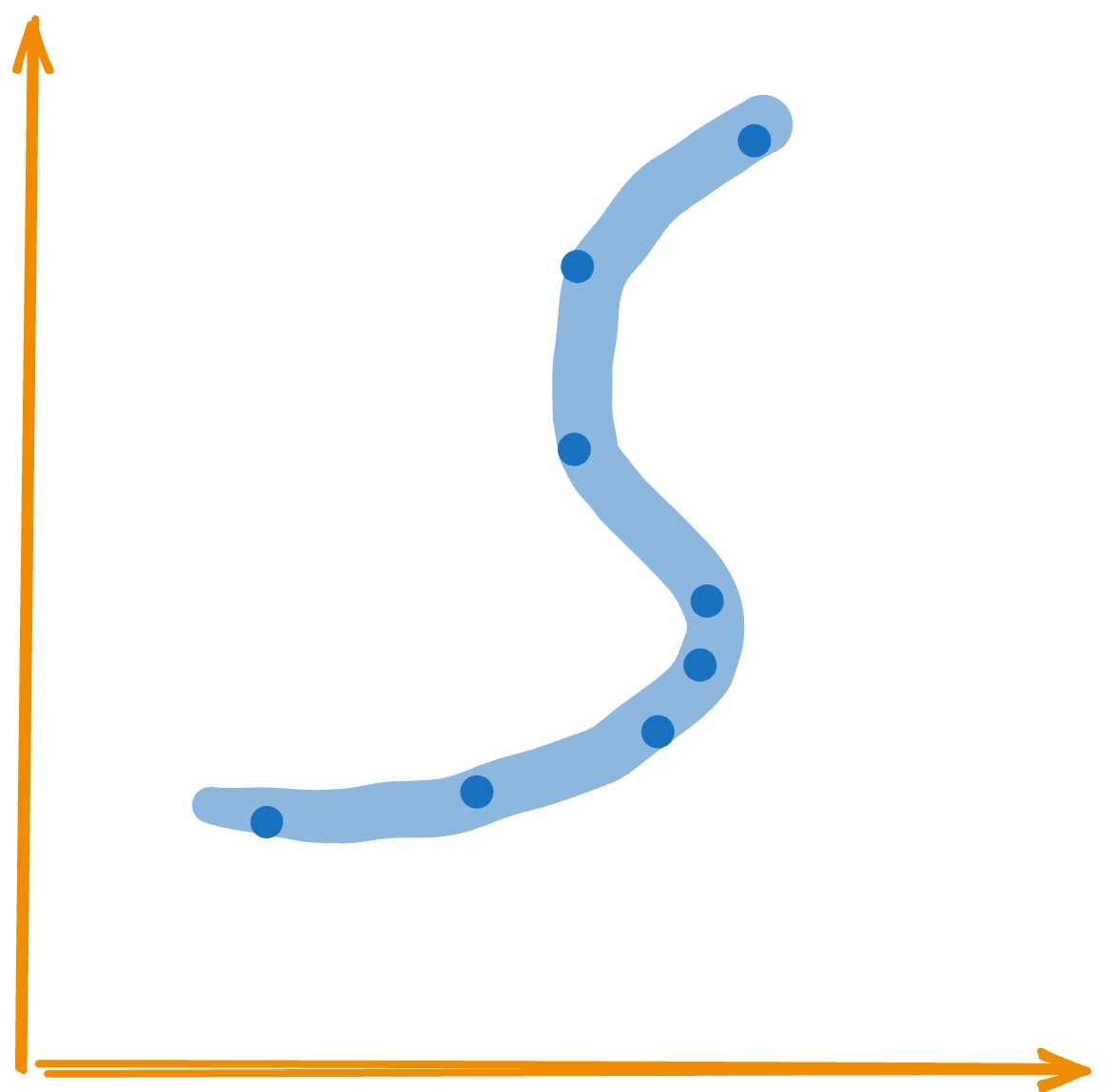

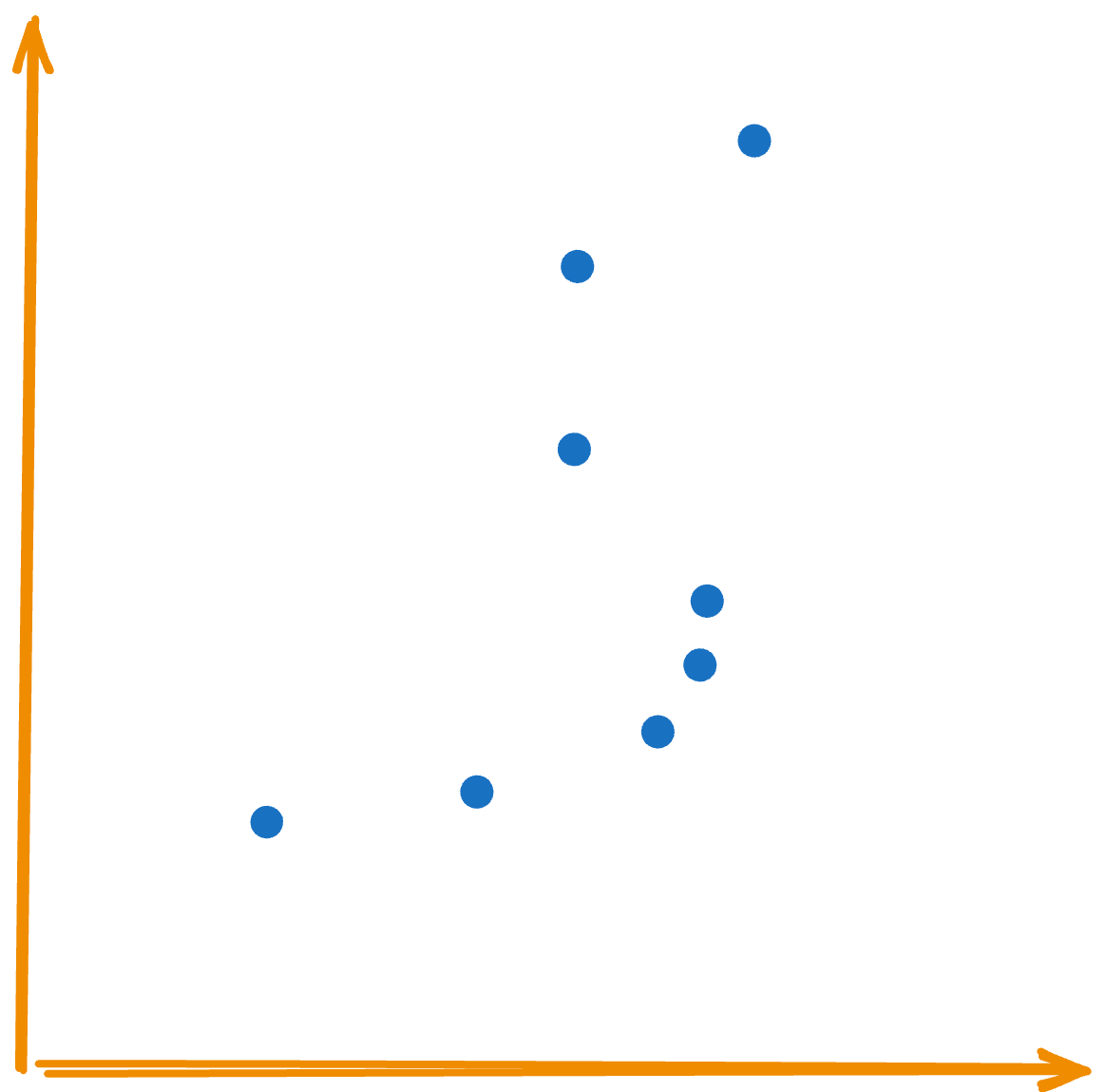

How is a test defined?

When is a test failing or passing?

Passed

Failed

Regression Testing

:doodle { width: 8em; height: 8em; gap: 10px; } background: gray;

Regression Testing

:doodle { width: 8em; height: 8em; gap: 10px; } background: gray; :nth-child(1) { background: orange; } @nth(9) { background: orange; } @nth(12) { background: orange; } @nth(20) { background: orange; } @nth(21) { background: orange; }

Regression Testing

:doodle { width: 8em; height: 8em; gap: 10px; } background: gray; :nth-child(1) { background: transparent; } @nth(9) { background: transparent; } @nth(12) { background: transparent; } @nth(20) { background: transparent; } @nth(21) { background: transparent; } @nth(2) { background: green; } @nth(5) { background: green; } @nth(8) { background: green; } @nth(11) { background: green; } @nth(14) { background: green; } @nth(18) { background: green; } @nth(24) { background: green; }

Regression Testing

:doodle { width: 8em; height: 8em; gap: 10px; } background: transparent; @nth(2) { background: green; } @nth(5) { background: green; } @nth(8) { background: green; } @nth(11) { background: green; } @nth(14) { background: green; } @nth(18) { background: green; } @nth(24) { background: green; }

What tests should be selected?

How should tests be selected?

Competition code on GitHub
Troubleshooting with Issues and Discussion Forum
Docker Images of all Tools!

Infrastructure

				 			%%{init: {'theme': 'dark', 'themeVariables': { 'darkMode': true }}}%%

				 			sequenceDiagram
				 			Evaluator ->>+ ToolX: initialize
				 			ToolX -->>- Evaluator: ok
				 			Evaluator ->>+ ToolX: select
				 			ToolX -->>- Evaluator: return selection

				 			%%{init: {'theme': 'dark', 'themeVariables': { 'darkMode': true }}}%%
				 			block-beta
				 			columns 3
				 			d("Evaluator (Docker Container)"):1
				 			blockArrowId5<["gRPC"]>(x)
				 				g("ToolX (Docker Container)"):1
				 				block:group3:3
				 				docker("Docker with Nvidia Runtime")
				 				end

Protocol Buffers


syntax = "proto3";

service CompetitionTool {
  rpc Name(Empty) returns (NameReply) {}
  rpc Initialize (stream Oracle) returns (InitializationReply) {}
  rpc Select (stream SDCTestCase) returns (stream SelectionReply) {}
}

message Empty {}
message NameReply {
  string name = 1;
}
message Oracle {
  SDCTestCase testCase = 1;
  bool hasFailed = 2;
}
message SDCTestCase {
  string testId = 1;
  repeated RoadPoint roadPoints = 2;
}
message RoadPoint {
  int64 sequenceNumber = 1;
  float x = 2;
  float y = 3;
}
message InitializationReply {
  bool ok = 1;
}
message SelectionReply {
  string testId = 1;
}


syntax = "proto3";

service CompetitionTool {
  rpc Name(Empty) returns (NameReply) {}
  rpc Initialize (stream Oracle) returns (InitializationReply) {}
  rpc Select (stream SDCTestCase) returns (stream SelectionReply) {}
}
...

What are the evaluation metrics?


@dataclass
class EvaluationReport:
    """This class holds evaluation metrics of a tool."""

    tool_name: str
    benchmark: str
    test_suite_cnt: int
    selection_cnt: int
    time_to_initialize: float
    time_to_select_tests: float
    time_to_fault_ratio: float
    fault_to_selection_ratio: float
    diversity: float

Benchmark

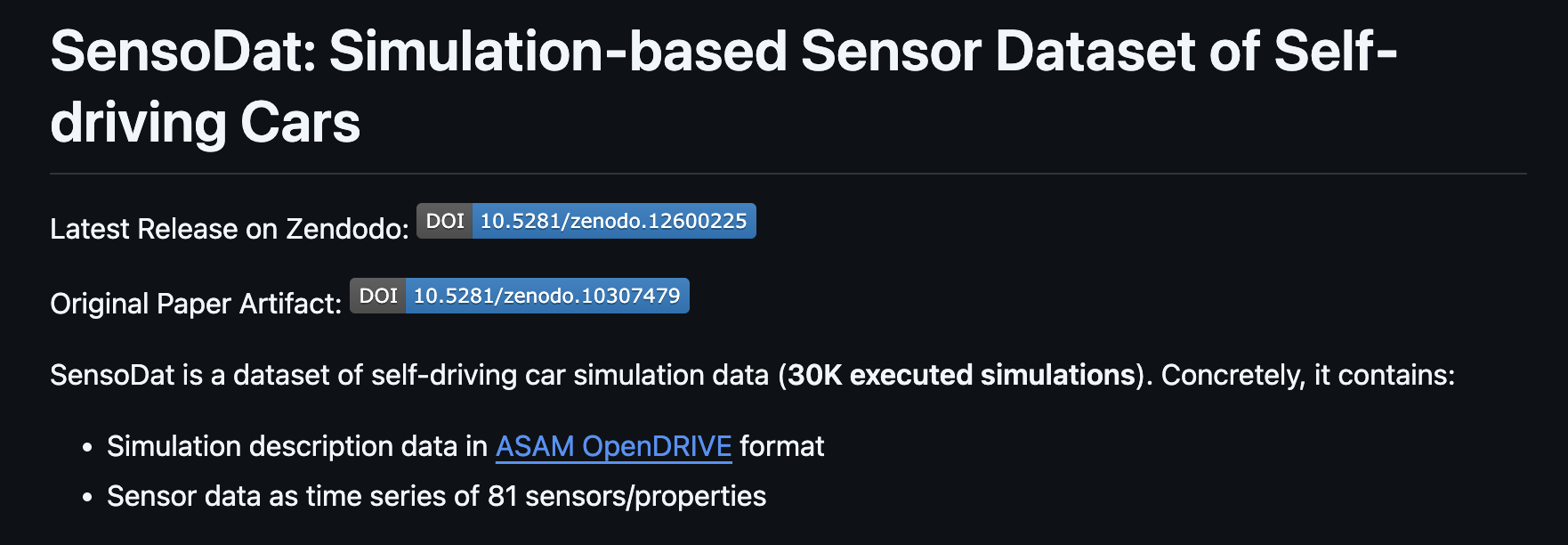

SensoDat: Simulation-based Sensor Dataset of Self-driving Cars

32,580 Test Cases
Generated by three test generators

Experiments

The experiments are conducted on an Open Stack virtual machine (VM) with 16GB of RAM, eight virtual CPUs, and an Nvidia Tesla T4 GPU.

Results of SBFT Competition

RoadGeom

Prakash Aryan

Birla Institute of Technology and Science, Dubai

University of Bern, Switzerland

Results of ICST Competition

Finding 1

On average, the random test selector selects the most test cases (µ = 88.17) compared to all tools.

Finding 2

DETOUR required on average (µ = 61.77sec) to initialize the tool with the provided initialization data. All other tools did not require more than a second.

Finding 3

For the selection phase, DETOUR requires, on average, most of the time (µ = 15.67sec) followed by DRVN Tool (µ = 10.49sec). The remaining tools did not require more than three seconds on average.

Finding 4

The random selector has, on average, the worst Simulation Time to Fault Ratio with µ = 156.23. With an average of µ = 65.39, the ITS4SDC tool has the best ratio.

Finding 5

The ITS4SDC tool has, on average, the best Fault to Selection Ratio (µ = 0.8) and the random baseline the worst with µ = 0.38.

Finding 6

There is no clear indication that the diversity metric differs among all tools.

ITS4SDC

Ali ihsan Güllü, Faiz Ali Shah, Dietmar Pfahl

University of Tartu, Estonia

Thank you all!

Any feedback and/or ideas are welcome for future editions.

github.com/christianbirchler-org/sdc-testing-competition
