SBFT/ICST Tool Competition: Self-Driving Car Testing

Aryan Prakash

University of Bern

Switzerland

Christian Birchler

University of Bern

Switzerland

Tommaso Fulcini

Politecnico di Torino

Italy

Luigi Sterace

Università degli Studi di Napoli Federico II

Italy

Sebastiano Panichella

University of Bern

Switzerland

AI4I - The Italian Institute of Artificial Intelligence for Industry

Italy

Self-Driving Car Competition

Context

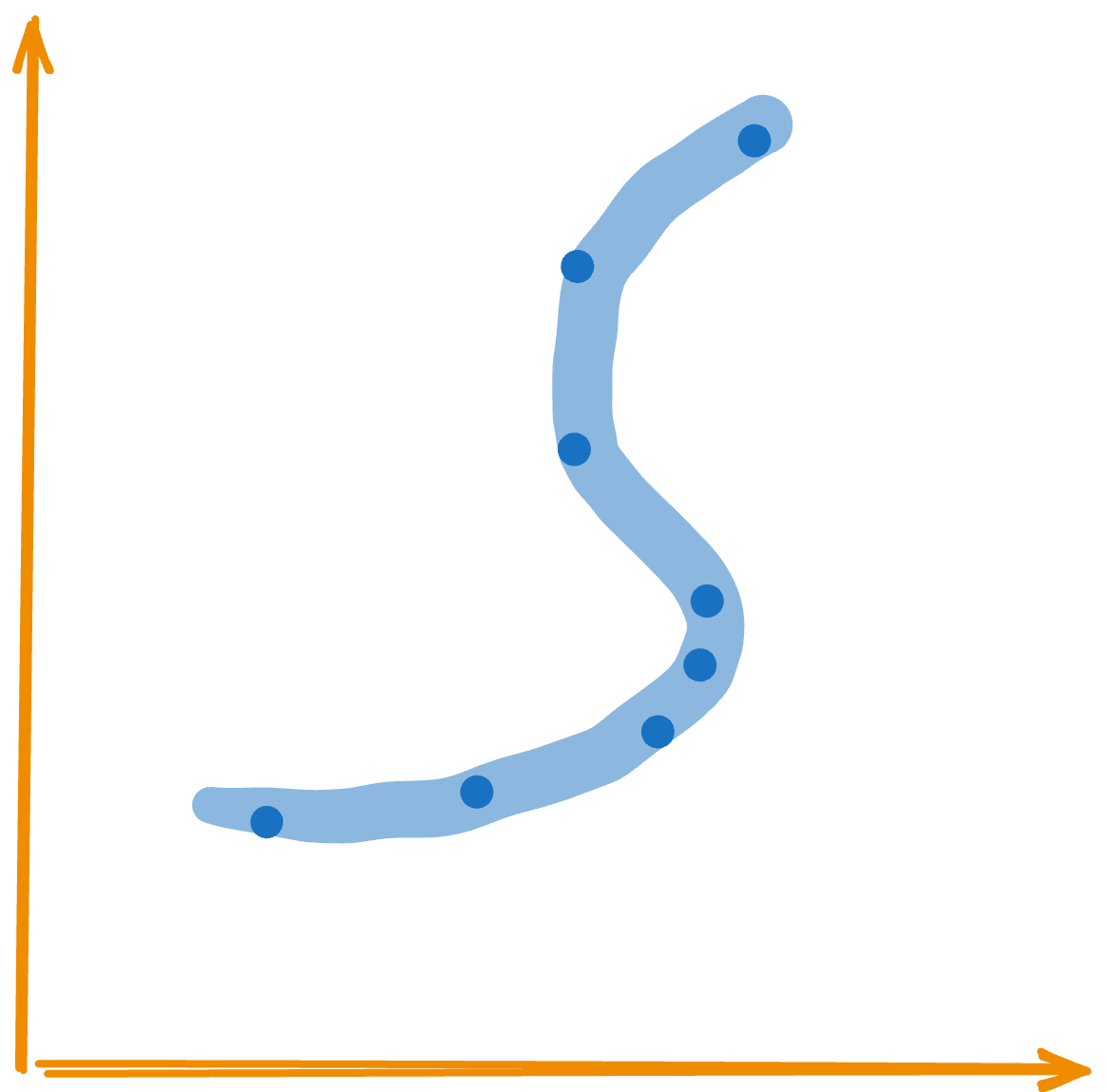

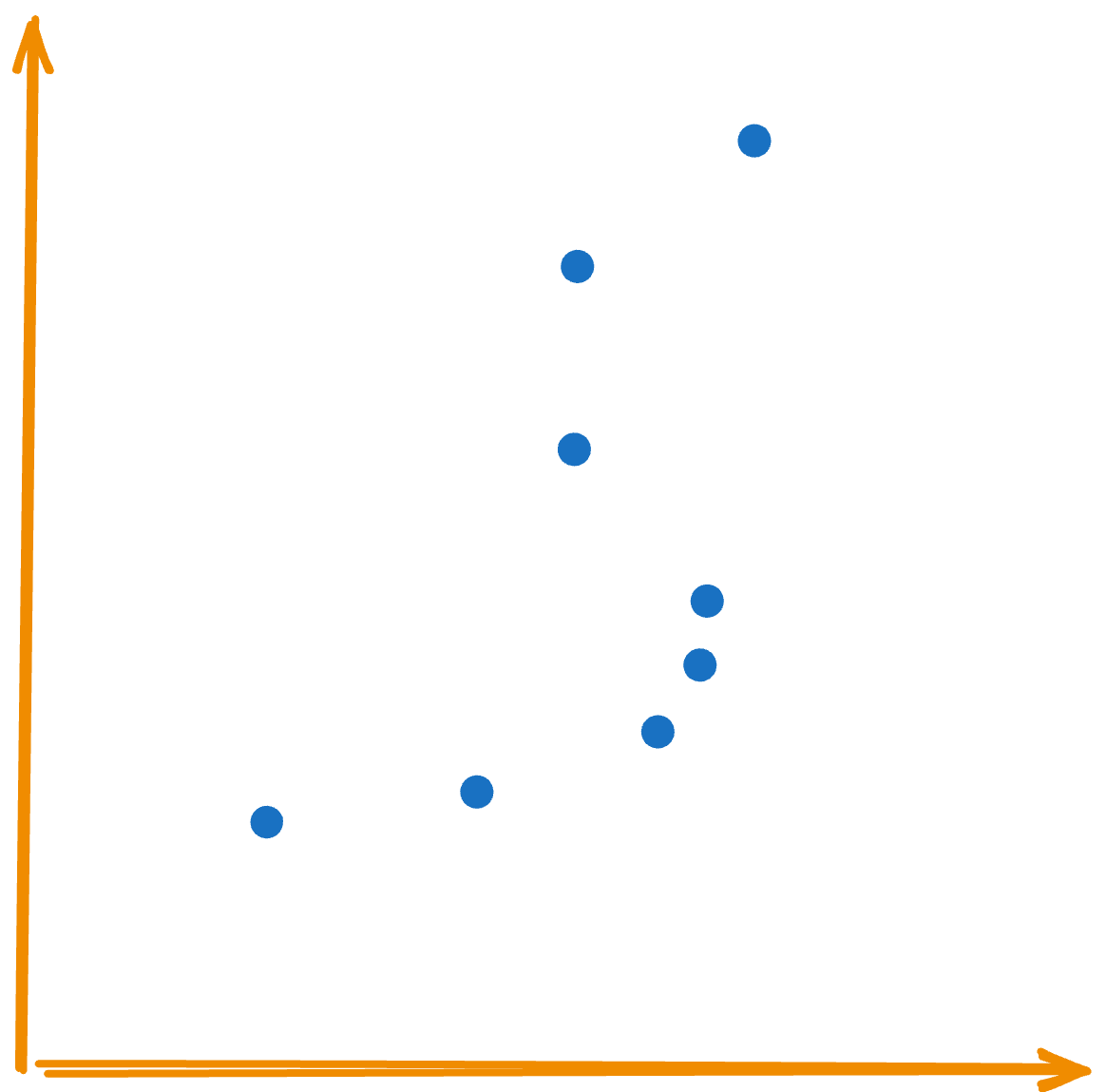

How is a test defined?

How is a test defined?

When is a test failing or passing?

Passed

Failed

Regression Testing

Regression Testing

Regression Testing

Regression Testing

Regression Testing

• Competition code on GitHub
• Troubleshooting with Issues and Discussion Forum
• Docker Images of all Tools!

Infrastructure

				 			%%{init: {'theme': 'dark', 'themeVariables': { 'darkMode': true }}}%%

				 			sequenceDiagram
				 			Evaluator ->>+ ToolX: initialize
				 			ToolX -->>- Evaluator: ok
				 			Evaluator ->>+ ToolX: prioritize
				 			ToolX -->>- Evaluator: return priority



				 			%%{init: {'theme': 'dark', 'themeVariables': { 'darkMode': true }}}%%
				 			block-beta
				 			columns 3
				 			d("Evaluator (Docker Container)"):1
				 			blockArrowId5<["gRPC"]>(x)
				 				g("ToolX (Docker Container)"):1
				 				block:group3:3
				 				docker("Docker")
				 				end



Protocol Buffers


syntax = "proto3";

service CompetitionTool {
  rpc Name(Empty) returns (NameReply) {}

  rpc Initialize (stream Oracle) returns (InitializationReply) {}

// bidirectional streaming for high flexibility
  rpc Prioritize (stream SDCTestCase) returns (stream PrioritizationReply) {}
}

message Empty {}

message NameReply {
  string name = 1;
}

message Oracle {
  SDCTestCase testCase = 1;
  bool hasFailed = 2;
}

message SDCTestCase {
  string testId = 1;
  repeated RoadPoint roadPoints = 2;
}

message RoadPoint {
  int64 sequenceNumber = 1;
  float x = 2;
  float y = 3;
}

message InitializationReply {
  bool ok = 1;
}

message PrioritizationReply {
  string testId = 1;
}




syntax = "proto3";

service CompetitionTool {
  rpc Name(Empty) returns (NameReply) {}
  rpc Initialize (stream Oracle) returns (InitializationReply) {}
  rpc Prioritize (stream SDCTestCase) returns (stream PrioritizationReply) {}
}
...



@dataclass
class EvaluationReport:
    """ This class holds evaluation metrics of a tool."""

    test_suite_cnt: int
    benchmark: str
    time_to_initialize: float
    time_to_prioritize_tests: float
    tool_name: str
    time_to_first_fault: float | None
    time_to_last_fault: float | None
    apfd: float
    apfdc: float

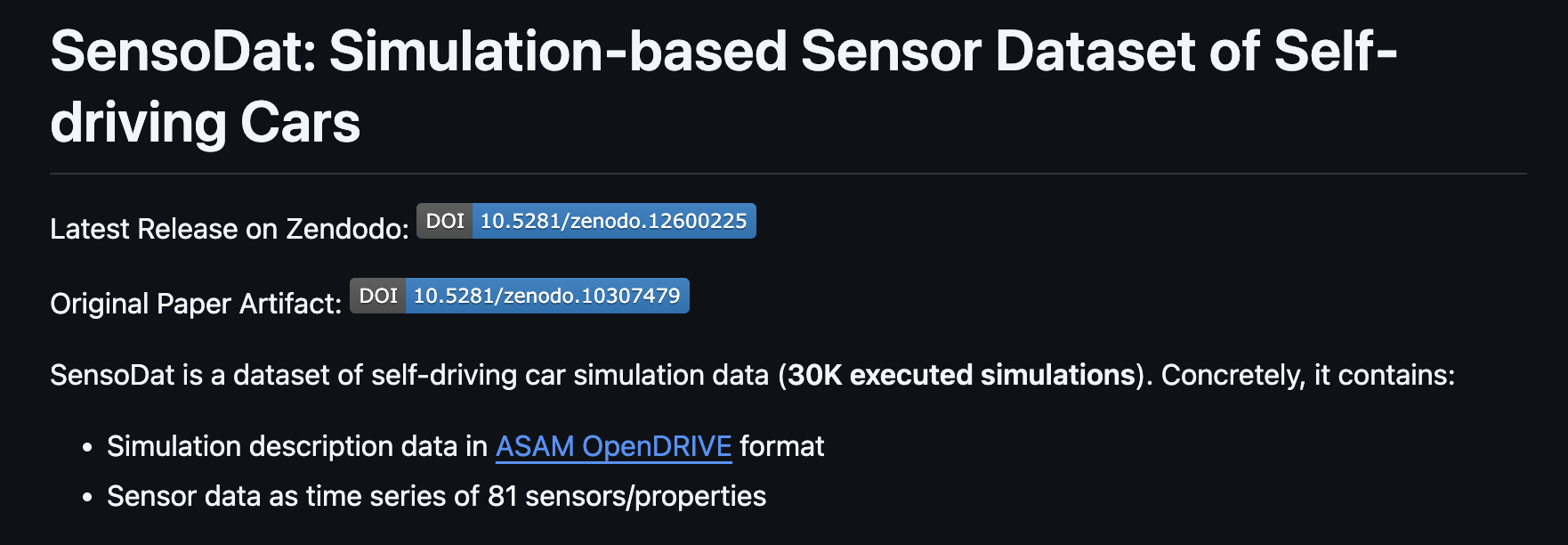

Benchmark

• 32,580 Test Cases
• Generated by three test generators

Experiments

The experiments are conducted on a virtual machine (VM) with 16GB of RAM, eight virtual CPUs.

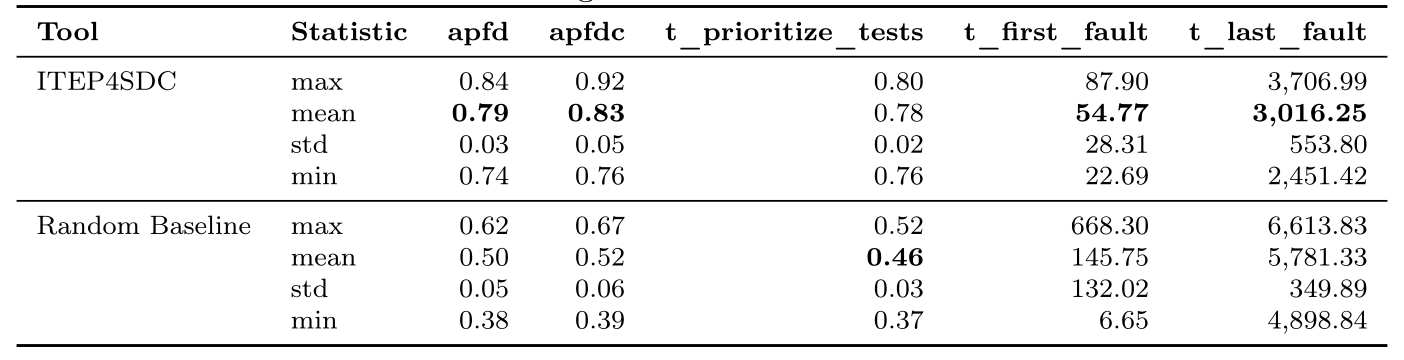

Results of SBFT Competition
